PTFE Gaskets
PTFE (polytetrafluoroethylene), known by its Teflon® trademark, is a highly inert synthetic fluoropolymer. It combines extreme hydrophobicity with one of the lowest friction coefficients of any solid material while resisting virtually all industrial chemicals and solvents. To enhance performance under high pressures and elevated temperatures, PTFE gaskets can be reinforced with glass fiber, carbon, or graphite fillers that reduce creep and improve dimensional stability.
Trusted PTFE Gasket Manufacturer Since 1977
Gasket and Seal Fabricators specializes in precision-cut PTFE sealing solutions. Our gaskets are engineered for extreme chemical resistance and high-temperature performance up to 500°F, with cutting tolerances as tight as ±0.005 inches. We serve industrial sealing requirements across compressor systems, electric motors, medical devices, petrochemical processing equipment, and more.

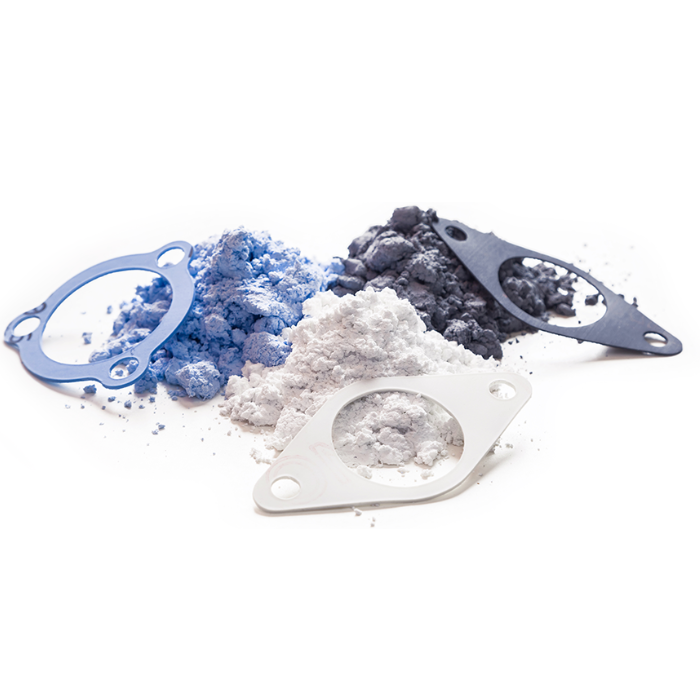

Virgin PTFE Gaskets
Pure, unfilled polytetrafluoroethylene offering maximum chemical resistance across virtually all industrial chemicals, acids, and solvents with exceptional temperature range (-400°F to +500°F). FDA-compliant virgin PTFE gaskets deliver the clean, inert performance required for pharmaceutical, food processing, and potable water applications.

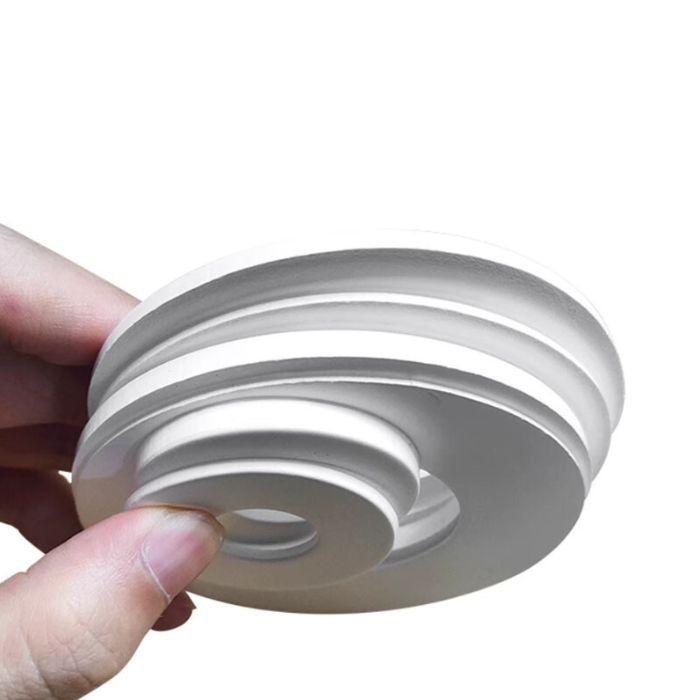

Expanded PTFE Gaskets
Highly conformable expanded PTFE gasket material created through a specialized expansion process that produces exceptional sealability on rough, damaged, or uneven flange surfaces. This soft, compressible structure achieves reliable seals under minimal bolt loads while maintaining the chemical resistance and thermal stability of virgin PTFE.
Carbon-Filled PTFE Gaskets
Carbon-reinforced PTFE compounds engineered for enhanced wear resistance, improved thermal conductivity, and reduced thermal expansion. These gaskets deliver exceptional performance in dynamic sealing applications and high-temperature environments where dimensional stability under compression is essential.
Etched PTFE Gaskets
Chemically etched PTFE surfaces that enable adhesive bonding and composite construction for specialized sealing applications. Through sourced sodium etching processes, the naturally non-stick surface of PTFE can be altered to allow permanent adhesion to metal carriers, elastomers, or other substrates for composite gasket assemblies.
Factory-Direct Supplier for PTFE Gasket Materials
As an authorized distributor for leading material manufacturers, we provide complete OEM fabrication services backed by direct factory relationships and certified material traceability. We specialize in both commercial-grade and military-spec PTFE compounds, including UL, FDA, and NSF recognized materials that meet stringent regulatory requirements for critical applications. Our technical specialists work closely with your team to ensure consistent quality control, competitive lead times, and complete documentation support for your production and regulatory needs.
One Call, Complete Solutions
Connect with our technical team for PTFE material selection guidance, fabrication method recommendations, and a detailed quote for your sealing requirements.
