Viton Gaskets
As a leading Viton gasket manufacturer, we fabricate custom gaskets and seals in multiple FKM compounds — including A, B, F, and GLT grades — plus FFKM perfluoroelastomers for ultimate chemical resistance.
As an AS9100D-certified fabricator, we hold custom Viton and FFKM gaskets to the same quality standards required for aerospace and defense manufacturing.
All products meet stringent aerospace specifications including AMS-R-83485 and are manufactured to exact tolerances using advanced molding and fabrication techniques.
Your Trusted Viton Gasket Manufacturer

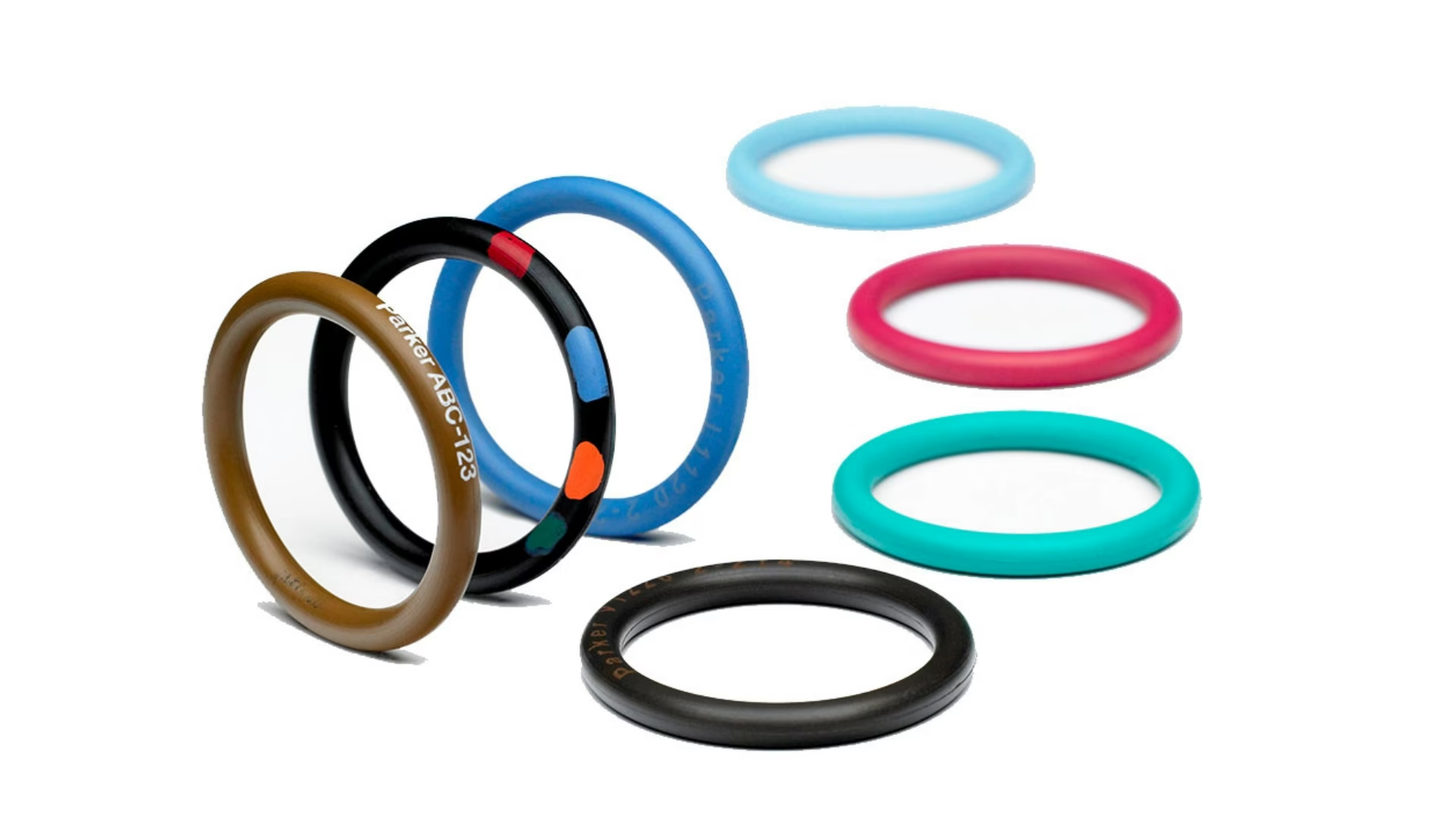

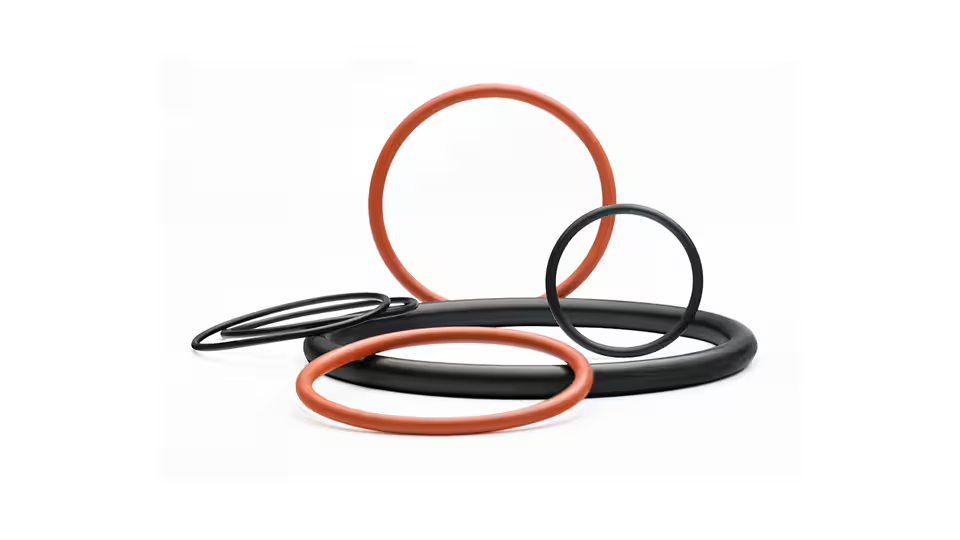

Viton O-Rings & Cord Stock
Precision-molded Viton o-rings in standard AS568 and metric sizes, plus continuous cord stock for field fabrication. Available in multiple FKM compounds for temperature ranges from -15°F to +400°F with exceptional chemical resistance.
FFKM Perfluoroelastomer Seals
Ultra-high-performance FFKM seals offering universal chemical compatibility and temperature resistance to 600°F. Critical for semiconductor, pharmaceutical, and chemical processing applications requiring absolute purity.
Die Cut Viton Gaskets
Die-cut and water-jet fabricated FKM gaskets in complex geometries from 1/64″ to 1/4″ thick. Available in multiple grades including Viton A (66% fluorine), B (68% fluorine), and F (70% fluorine) with durometer ratings from 55 to 90 Shore A.
Molded FKM Components
Custom molded Viton seals available through our trusted molding partners using compression, transfer, and injection molding processes. We can coordinate complex geometries manufactured to RMA A2 precision tolerances in black, brown, or white compounds, with custom color compounding available upon request.
FDA-Compliant Compounds
Food-grade and pharmaceutical-approved Viton compounds meeting FDA 21 CFR 177.2600 requirements. Clean-room manufactured with full material traceability for validation in regulated food processing and pharmaceutical applications.
Specialty FKM Grades
Advanced compounds including Low temperature FKM for flexibility and sealing performance in sub-zero environments, Extreme grade for enhanced plasma resistance, Base grade for improved processing characteristics, and Viton Sponge for cushioning applications requiring chemical resistance with compressibility.
Choosing the Right Material

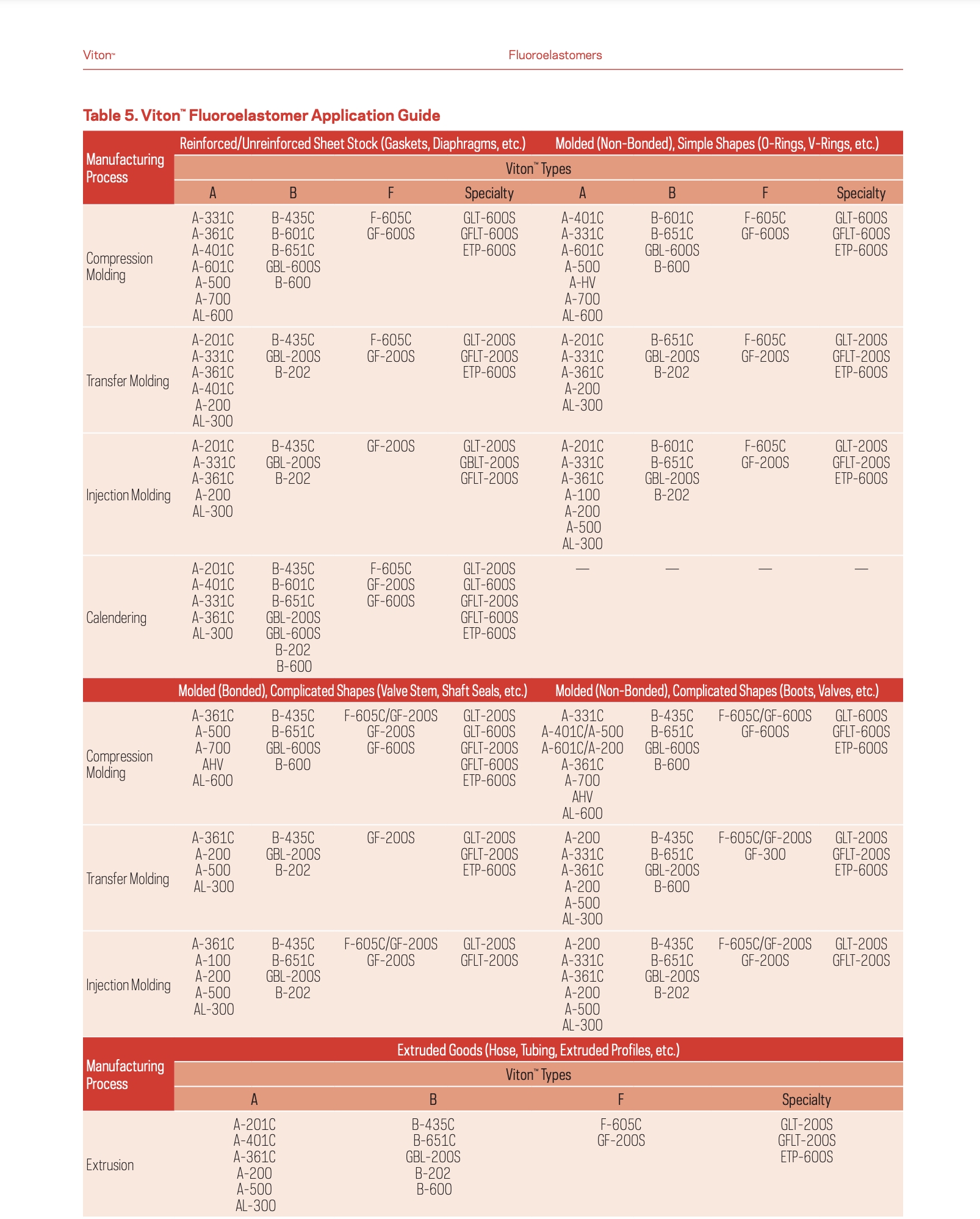

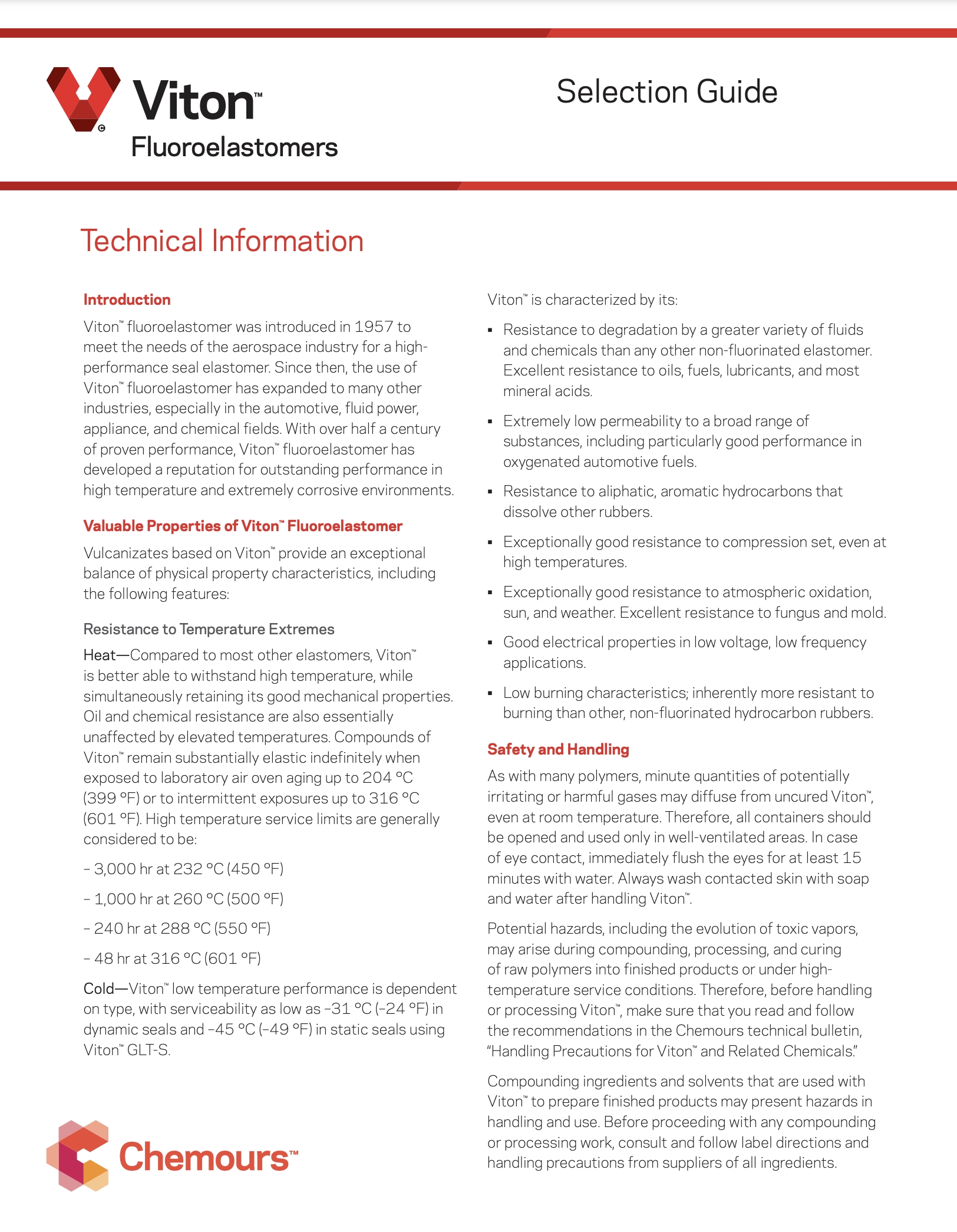

FKM vs FFKM Selection Guide
Need Material Guidance?
Connect with our specialists to determine what’ll meet your performance needs.
Why Fluoroelastomer (FKM) Works for Most Projects
Most challenging applications find their solution in FKM elastomers. These materials tackle high chemical resistance requirements and temperatures up to 400°F (204°C). Thanks to their 66-70% fluorine content, FKM seals resist fuels, oils, solvents, and corrosive chemicals. It’s ideal for automotive, industrial, and oil/gas applications where you need more than standard rubber, but still want to save on costs.
Why Some Applications Need Perfluoroelastomer (FFKM)
Some applications simply can’t compromise on seal performance. When you’re dealing with universal chemical compatibility across 1,800+ chemicals and solvents, or temperatures that push beyond 400°F up to 600°F (325°C), perfluoroelastomers are your only option. The fully fluorinated backbone creates unmatched chemical inertness, making FFKM the go-to choice for many semiconductor, pharmaceutical, and aerospace applications.
Frequently Asked Questions
What are Viton gaskets used for?
Viton gaskets are used in aerospace, chemical, automotive, industrial, and oil/gas applications, as well as semiconductor and pharmaceutical processing where FFKM grades are required for absolute purity.
What temperature range can Viton gaskets handle?
Standard FKM Viton compounds handle -15°F to +400°F. For applications that push beyond that, FFKM perfluoroelastomer seals extend the range up to 600°F.
What is the difference between Viton A, B and F?
The grades differ by fluorine content: Viton A is 66% fluorine, Viton B is 68%, and Viton F is 70%. Higher fluorine content generally means better chemical resistance.
Is Viton better than EPDM?
Neither is universally “better,” as they solve different problems. Viton (FKM) is the stronger choice for oil, fuel, and aggressive chemical exposure, and it handles higher continuous heat, up to 400°F, versus EPDM’s roughly 300°F ceiling. EPDM performs better in outdoor, UV-exposed, and water/steam applications and tends to stay flexible at lower temperatures than standard Viton grades. The deciding factor is usually what the seal will contact, not which material is “premium.”
